XBoss

Inspection of mounting machine according to wdk-test guideline based on wdk-Mounting/Demounting Instructions UHP and Run Flat Tires.

Top 20 Tools is a prize awarded by "Auto Repair & Maintenance" magazine, with the help of the American magazine "Motor". The award is given by a jury consisted of automotive industry experts, dealers, instructors and technicians to the tools that stand out for their usefulness and innovation.
XBoss

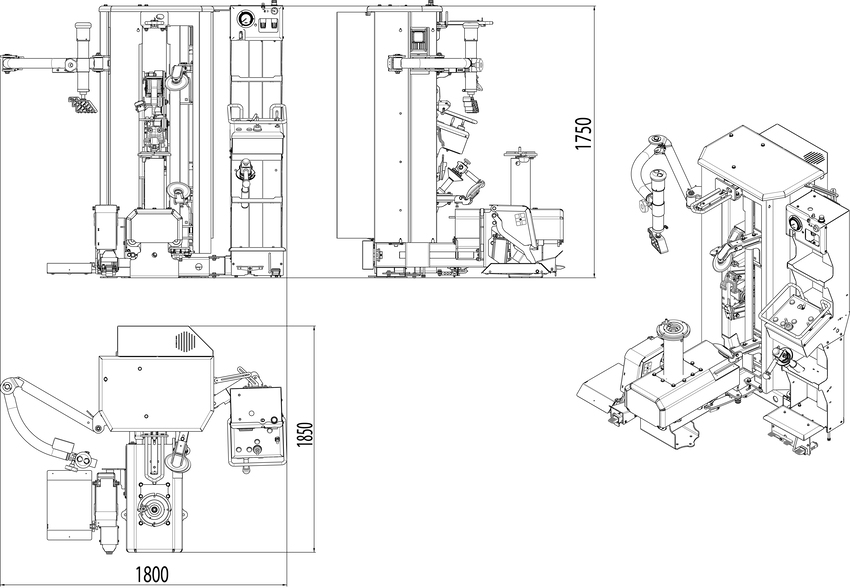

Dimensions

Super-automatic touchless leverless tire changer


XBoss super-automatic touchless leverless tire changer represents a further significant step of tire changers' evolution. It's based on patented SA FAST system (SAfe on wheel FAST on work) and embodies the best of Giuliano technologies.
Designed with these guidelines, the new XBoss tire-changer offers a unique, incredibly advanced and most innovative Giuliano experience yet: it's enough just to set tire position before starting operations by means of two laser pointers (Twin Lasers). Once position is set, all functions are automatic in sequence, thanks to our TriTool system consisting of three independent mounting/demounting tools.
Equipped with XTool, a real touchless leverless tire demount device (Giuliano exclusive patent). No matter which kind of tire you are working with, thanks to XTool the procedure is always the same with conventional, run-flat, or "extreme" UHP low profiled tires.
All working tools and devices are powered by motoinverter system, extremely precise, and powerful.
The arc movement of the bead loosener disks allows the disks to work purposely in misaligned position with the center hole of the rim (Center Driven Concept), thereby ensuring a better and faster penetration of the disks towards the center of the rim during the normal clockwise rotation and reducing the bead breaking time at a single turn.
XBoss tire-changer is suitable for fitting/removing all kinds of passenger car and LCV tires from 12" to 30" (max. wheel diam. 1200 mm./47", max. wheel width 406 mm./16") and it is recommended for top professional tire specialists, servicing run flat and UHP tires with no tool/rim contact.

Functions

  • Double arm/disk bead breaker system, powered by motoinverter;
  • Bead loosener disks are slightly but purposely misaligned with the rim center for a better and faster penetration and immediate bead loosening, Center Driven Concept (Giuliano patent);
  • Equipped with TriTool system, syncronized tool movements for both mounting and demounting (patent pending);
  • Double rotation speed by pedal and motoinverter;
  • Patented SMART LOCK ultra-quick wheel clamping system, through cone and shaft with Smart Lock nut;
  • All movements powered by motoinverter;
  • XTool touchless leverless tire demount device (Giuliano patent);
  • Wheel positioning through motorized clamping chuck and laser pointers (patent pending);
  • Tire inflation by pedal (standard);
  • Operated by pedal and control console with joysticks;
  • Equipped with BP1 Plus bead pressing arm (standard) complete with self-storage function (Giuliano patent);
  • Equipped with Lifter (standard);
  • Suitable for Tubeless tire bead seating system (optional).
(*) Version available upon request
Standard Features
Rim clamping range 12" - 30"
Max. tire diameter 1200 mm (47")
Max. tire width 406 mm (16")
For reverse mounted wheels, variable according to rim features
Max. wheel weight 80 Kg
Bead loosener force 6860 N (700 Kg)
Operating pressure 8-10 bar (116-145 Psi)
Power supply 220V - 1ph
Motors power 0,75 kW / 2 speed
Rotating speed 7 - 16 rpm
Pre-set tire inflating pressure 3,5 bar (50 Psi)
Net weight 640 Kg
Dimensions (WxDxH) 1800 x 1850 x 1750 mm

Standard Accessories


Pneumatic wheel positioner.
Plastic protections for Smart Lock centering cone
Rubber protections for clamping chuck
Plastic protections for clamping chuck driving pin
Plastic cone Ø 70 mm for clamping special alloy rims
Reduction ring for clamping chuck.
To be used to fit particular alloy rims
Rubber protector for steel rims.
(marked with •)
Rubber protector for aluminium rims
(marked with ••)
Rubber protector for aluminium rims with
arched spokes. (marked with •••)
Adjustment knob for SMART LOCK
Plastic bead pressing clamp with
extra insert for rim edge with special
inclination. To be used together with rubber protections for mounting UHP and RUNFLAT tyre according to WDK rules.
Air lubricator, air filter/water trap
Cleaning brush for SMART LOCK and clamping chuck inner surface
Plastic tire lever. To be used during tire demounting in accordance with the WDK procedure.
Brush
Lube paste bucket, 5 kg.
Kit of nylon protectors for mounting/demounting tool
Work gloves
CD-ROM including literature (parts book, operators manual and training video)

Optional Accessories


Wheel clamping adaptor for reverse mounted wheels and wheels with no center hole
Kit of 7 long conical pins for FPM456
Kit of 6 spheric pins for FPM456
Truck cone kit, allows clamping VANs and LCVs wheels with center
hole diameter from 120 to 190 mm.
Truck cone kit, allows clamping VANs and LCVs wheels with center
hole diameter from 140 to 220 mm.
Double face cone for light trucks, allows clamping VANs and LCVs wheels with center hole diameter from 75 to 145 mm.
Cone for steel rims with low thickness and center hole diameter from 75 to 120 mm
Kit of 3 G-clamps to help adding extra bead pressure points on top bead while assembling it.
Kit of nylon protectors for mounting/demounting tool
Kit of 4 rubber protections for steel rims.
Kit of 4 rubber protections for aluminium rims.
Kit of 4 rubber protectors for aluminium rims with arched spokes.
Lube paste bucket, 5 kg.
Plastic tire lever for soft tires removing operations. To be used during tire demounting in accordance with the
WDK procedure.
Kit of 10 ABS protections for cone.
Kit of 10 rubber protections for clamping chuck faceplate
Air filter with pressure regulator and CE manometer.
Tubeless inflation external kit.
Kit Run Flat UHP
Nylon cone for special LAMBORGHINI wheels, allows clamping wheels with center hole diameter from Ø 55 to 85 mm.
Nylon cone for special PORSCHE wheels, allows clamping wheels with center hole diameter from Ø 60 to 85 mm.
Nylon cone for special BMW wheels, allows clamping wheels with center hole diameter from Ø 55 to 70 mm.
