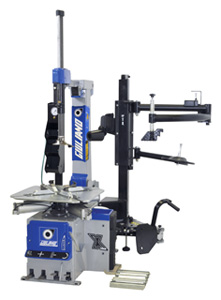

High Performance Super Automatic Tilt Back Tyre Changer with Dual Assist Arm

Super-automatic tilt back tyre changer for tyres with rim from 10" to 28" (max. wheel diameter 1120 mm./44", max. wheel width 406mm./16"). Equipped with dual assist arm for easy mounting/demounting tyres.

RUSC
0,67

Resistance Under Stress Coefficient (RUSC) gives some idea of how robust a tyre changer can be, in terms of strength and power against all different kinds of stress involved in mounting/demounting tyres. Do you want to know more about RUSC ? Click here !

Approved by
Inspection of mounting machine according to wdk-test guideline based on wdk-Mounting/Demounting Instructions UHP and Run Flat Tyres.
(*) Version available upon request
Main Features
Car (TC)

Car
Suitable for car wheels

SUPER (TC)

Superautomatic
Model with four control pedals, tilting tower, sliding horizontal arm and operating arm with automatic lowering and locking by pushing button.

10\

10"-28"
Allows to operate with tyre assemblies from 10" to 28".

RACING (TC)

Racing
Tyre changer with reinforced chassis.

JC (TC)

Jaw Clamping
Rim clamping is performed by means of 4 jaws facing each other, driven by pneumatic cylinders connected to the control pedal.

BBB (TC)

Blade Bead Breaking
Bead breaking by conventional blade, works with tyre assembly in vertical position

HP2 (TC)

HP2
Combines functionality of the both helper arms, Help and Press Arm, in a single combined arm.

PO (TC)

Power Out
Patented GIULIANO device to prevent bead breaker blade from getting stuck between rim and tyre bead during bead breaking operation.

SBS (TC)

Smart Blade System
Patented GIULIANO device to memorise bead breaker arm/shovel travel; it is possible to pre-set the starting and final position of bead breaker arm movement. It allows to break the bead of a full set of four wheels without using hands on both bead breaker arm and blade.

QL (TC)

Quadra Lock
Allows locking operating and horizontal arm in four combined movements, in order to completely remove every play or other consequence coming from mechanical stress on those arms during working procedure.

PX (TC)

Power X
Turntable plate with 4 cylinders, exclusively patented by GIULIANO, allows clamping tyre assembly with higher power, reliability and safety.

2SPEED (TC)

Two speed chuck
Two speed hydraulic chuck, allows to adjust rotation speed in accordance with the type of operation to perform, ensures work efficiency and safety.

Super-automatic tilt back tyre changer for tyres with rim from 10" to 28" (max. wheel diameter 1120 mm./44", max. wheel width 406mm./16"). Equipped with HP2 dual assist arm for easy mounting/demounting tyres and with Power X four cylinders turntable.
SX 234 is the state of the art conventional tyre changer, developed by Giuliano for high volume tyre shops, and tyre specialists, servicing racing, run flat and UHP tyres, that is, for all tyre professionals, who have to deal with most diverse tyres every day, but want to work with simplicity and without efforts.
Functions
  • Tilting tower, sliding horizontal arm with ø 41 mm operating arm;
  • Bead breaker double effect Cylinder ø 200 mm;
  • Reinforced Chassy and tower;
  • Tabletop thickness 12 mm w/POWER X 4 cylinders clamping system;
  • Fitting head designed for both standard and low profiled tyre applications;
  • Double rotation speed by pedal;
  • Tyre inflation by pedal (standard);
  • Patented SBS System for bead breaker shovel travel memory;
  • Equipped with HP2 dual assist arm (standard) and storage box;
  • Suitable for Tubeless tyre bead seating system (optional);
  • “Easy Access” extractable pedal box for quick service;
  • Adjustable bead breaker shovel angle;
  • QuadraLock system for total stiff locking of horizontal and operating arm;
  • PO System, Giuliano patent, for granting no BB shovel stuck into the rim;
  • Robotic pipe for operating arm positioning/lock;
  • Suitable for Tyre Lift (optional).
WDK: Version available upon request
Rim clamping range from outside 10" - 26"
Rim clamping range from inside 12" - 28"
Max. tyre diameter 1120 mm (44")
Max. tyre width 406 mm (16")
Bead breaker cylinder force at 10 Bar 30800 N
Operating pressure 10 bar (145 Psi)
Power supply 400V - 3ph / 2 speed
220V - 1ph
220V - 1ph / 2 speed
Motor power 0,8/1,1 kW (3ph)
Rotating speed 7-14 rpm
Pre-set tyre inflating pressure 3,5 bar (50 Psi)
Net weight 390 Kg
Max overall dimensions 1710 x 1940 x 2190 mm
Standard Accessories
Standard accessories
HP2 additional double arm to ease mounting operations of low profiled and UHP tyres.
Pedal operated inflating device.
Air filter with pressure regulator and CE manometer.
Optional Accessories
G-CLAMP Set. Helps adding extra bead-pressure points on top bead while assembling it. Kit includes 2 regular and 2 extra-size G-clamps.
Kit of rubber coated jaw protectors.
Kit of 4 rubber protections for steel rims.
Kit of 4 rubber protections for aluminium rims.
Kit of 4 rubber protectors for aluminium rims with arched spokes.
Lube paste bucket, 5 kg.
Tubeless inflation external kit.
Kit of rubber protections for clamping rims from inside using conventional
jaws.
Kit of 4 motorcycle wheels clamping adaptors, 6" - 24", with screw lock.
Kit of 4 clamping adaptors for HARLEY DAVIDSON wheels, oversize height, 6" - 24", with screw lock.
Quick release kit for mounting tools (includes one plastic tool and one hub
for connecting the tool delivered with the tyre-changer).
Mounting/demounting tool for soft tyres on steel wheels, including hub for
connection to quick release kit (QCK)
Mounting/demounting tool for arched spokes rims, including hub for connection to quick release kit (QCK).
Mounting/demounting tool for iron wheels with projecting central hub, including hub for connection to quick release kit (QCK)
Mounting tool for 6"-12" wheels with operating arm extension.
QX is a leverless mount/demount device, suitable for conventional, UHP and Run Flat tyres.
Exclusive GIULIANO Patent, it works in the same exact way of your traditional tyre bar, but without operator's manual force. Activated by an air operated cylinder, and controlled by a simple switch, allows the finger tool to be inserted step by step into the wheel drop center, to ease demounting operations.
With the same procedure, it can control bead lifting operation, to avoid damaging tyre bead.
Tool head is protected by nylon-kevlar inserts, easily replaceable, to avoid damages on alloy wheels.
When combined with bead breaker disk or Help arm roller, it provides additional bead pressing power to mount top bead of most difficult low profiled and stiff sidewall tyres.
Its most innovative feature, though, is the chance to install it in a fast and easy way on all different types of conventional tyre changers, even as a retro-fit kit.
You can basically upgrade your conventional tyre changer to a leverless model, in just a few minutes !
Kit of QX adaptors for connection to quick release kit (QCK).
QX and QX Plus adjusting tool.
Kit of 10 front plastic protections, for QX and QX Plus.
Kit of 10 rear plastic protections, for QX and QX Plus.
Manual bead depressor.
Manual bead depressor with extendable travelling pad.
Pressing cone for clamping RUN FLAT tires from outside.
Kit Run Flat UHP
Air filter with pressure regulator and CE manometer.
Smart Blade System (SBS)

Smart Blade System is a device to memorise bead breaker arm/shovel travel; it is possible to pre-set the starting and final position of bead breaker arm movement. It allows to break the bead of a full set of four wheels without using hands on both bead breaker arm and blade.

SX 234

Patented SBS system allows to memorize both starting and finishing position of the bead breaker arm and to break the bead of a full set of four tyres without using hands, while patented PO system avoids the bead breaker blade getting stuck between tyre and rim.
Turntable, thanks to patented Giuliano POWER X system with 4 cylinders, grants greater clamping power on jaws (up to 60% compared to traditional 2 cylinders system), further than reliability and safety. HP2 dual assist arm reduces operator effort. Watch our videos to find out more about SX 234 and discover other great features that make it the best conventional tyre changer on the market.
