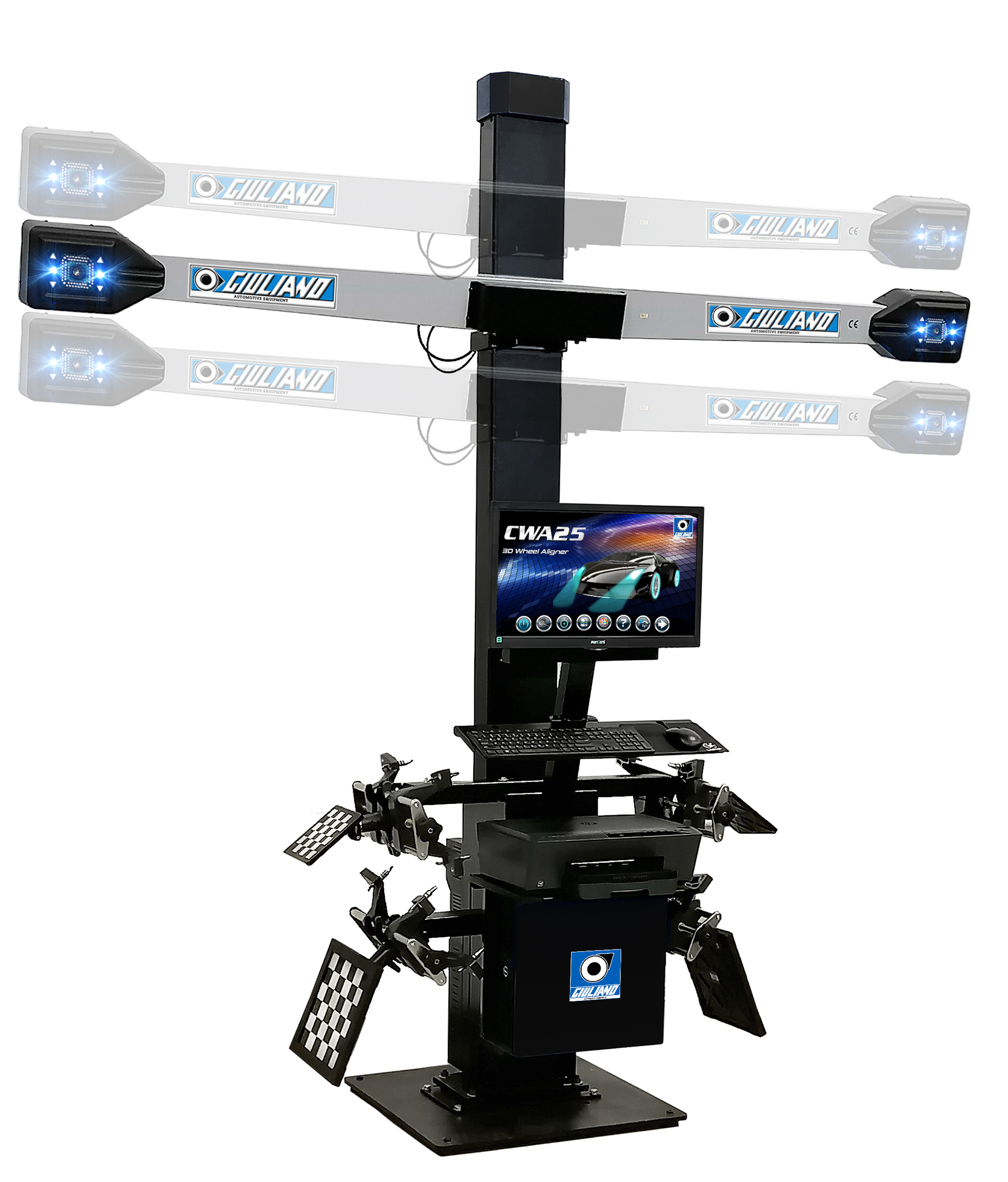

CWA 25

Wheel alignment for passenger’s cars and LCVs, 3D camera imaging with automatic camera beam.
Self-Tracking automatic movement of camera beam, synchronized with lift movement.

Suitable for Industry 4.0
Industry 4.0 Kit allows sharing data and information gathered during wheel alignment operation with workshop PC, helping to better arrange daily activity. Vehicle data, as well as daily agenda, can be stored and managed in most efficient way.

Functions

• Vision based 3D Imaging technology using 2 High Performance SI (Scientific Image) Camera.
• Automatic movement of the cameras according to the position of target plates.
• All measurements can be done at floor level and adjustments at any convenient height.
• Cameras instant imaging, a great help in adjusting alignment position.
• Simultaneous Front and Rear wheel alignment (4×4).
• Push Pull Runout compensation, set Back and thrust angle.
• Lift level compensation at adjustment level.
• Unlimited memory for vehicle specifications.
• Option for selection of vehicle specification during alignment.
• Power failure data protection.
• Automatic tracking of Left & Right turns for Caster/Kingpin measurements.
• Adjustment of Camber in wheel Jacked-up position. Toe curve measurement.
• Rear Setback & Track width difference.
• Toe adjustment in single Tie rod vehicle, Vehicle geometry measurements.
• Effortless Toe (Easy Toe) adjustment program.
• Camber measurement at Zero Toe.
• Drag link adjustment.
• Toe out on Turns & Lock angle measurements.
• Zoom-in option for live parameters.
• Two Colour Bar display for adjustment of all angles.
• Quick Wheel Alignment program by user-defined.
• Data Manager Software for storing alignment results.
• Customer Address in printout & customer data edit option.
• 3D Pictorial & Two color text printout.
• Multi-lingual program.
• Two wheel Alignment program by fixing only two target plates on front axle.
• High-resolution checker-board type targets, 14x14 cm (front) and 27x27 cm (rear), only 16mm thick. Light, durable and more accurate in performance.
• Designed for high-volume shops, provides high quality measurements in very short time, increasing your productivity.

Standard Accessories: Target Plates – 4 pcs, Wheel Brackets, PC with LED Monitor, Keyboard & Mouse, Break Pedal Lock, Steering Lock, Wheel Stoppers, Rotary Plates, Align + Data Manager Software
