XLINER A 200 TOP

3D Two-Camera Wheel Aligner for passenger cars and light commercial vehicles, featuring an automatic tracking camera beam synchronized with lift movement for fast, accurate and effortless wheel alignment.

FEATURES

• 3D measuring technology with two high-resolution cameras and compact targets.

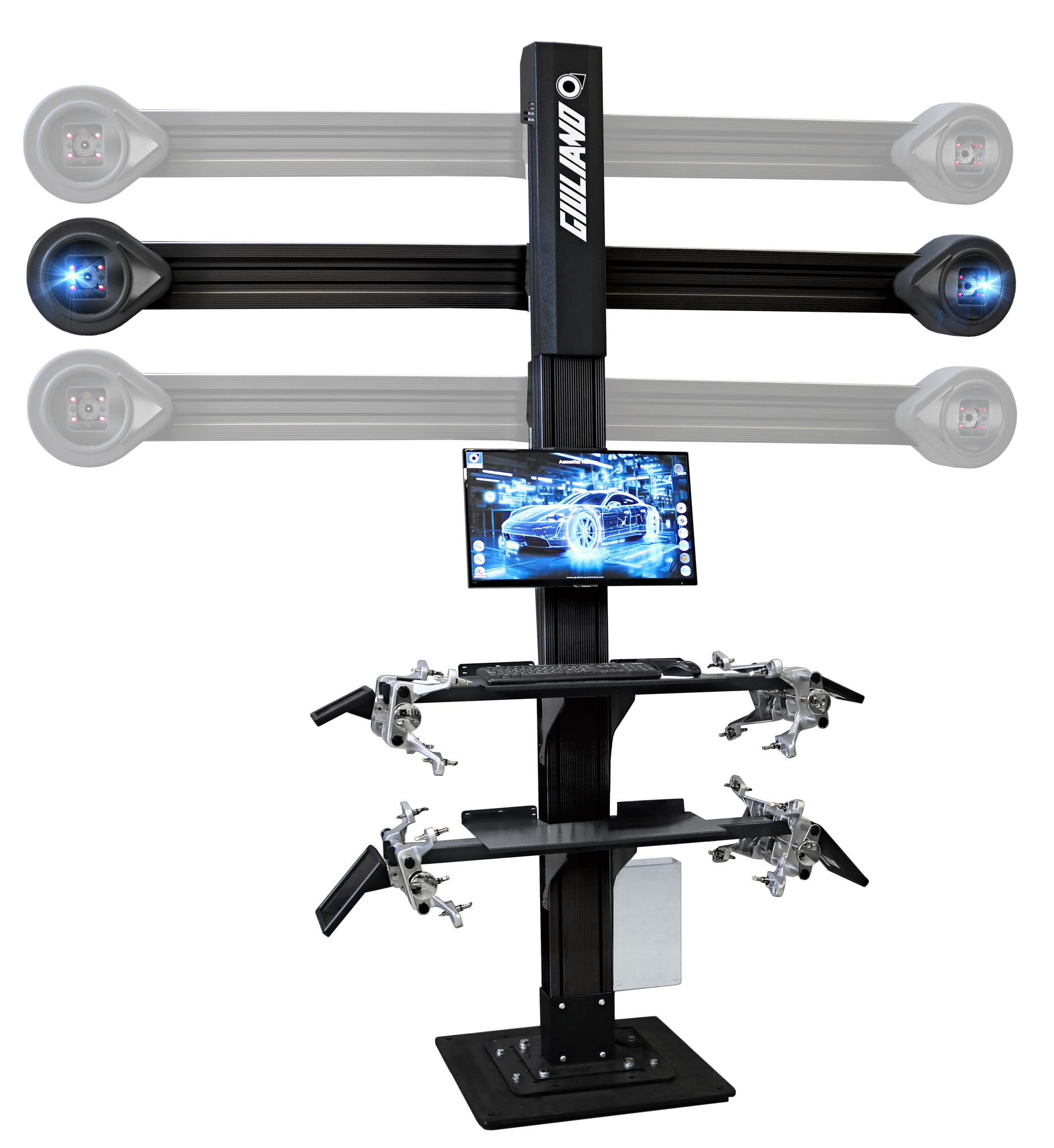

• Motorised camera beam with automatic target tracking, synchronized with lift movement (XLINER A200 TOP only).
• Wheel alignment measurements and adjustments can be performed with the vehicle at ground level or at any lifting height.
• Real-time measurement processing for faster and more accurate adjustments.
• Two run-out compensation procedures: Standard and Quick.
• Dedicated procedure for front axle measurements and adjustments only (XLINER A200 TOP only).
• Guided steering procedure for caster, kingpin inclination and toe-out on turns measurements.
• Maximum steering angle measurement.
• Measurement of wheelbase, track width, axle offset, cross diagonals and rolling radius (wheel diameter difference).
• Front axle steering axis inclination measurement.
• Rear axle thrust angle measurement.
• Two graphic display modes: Easy and Dynamic (XLINER A200 TOP only).
• Zoom function for improved parameter visibility during adjustments.
• Three-colour tolerance display for immediate parameter evaluation.
• Three operating modes: Standard, Fast and User-customizable.
• Customizable print reports including operator details, company logo and print colours.
• Multiple report layouts selectable from the customization menu.
• Job archive with quick search function.
• Lightweight high-resolution targets:
  • Front: 15.5 × 15.5 cm
  • Rear: 22 × 22 cm
• Designed for high-volume workshops, delivering outstanding accuracy, repeatability and increased productivity.
• Vehicle database selectable by region, including passenger cars and light commercial vehicles.
• Customizable vehicle search within the database.
• Manual entry of custom vehicle specifications.
• Multilingual software.

Workshop Connectivity
XLINER A200 TOP allows workshop PCs to store, manage and share wheel alignment data efficiently, simplifying job management and improving workshop productivity.

STANDARD ACCESSORIES

• 4 measuring targets
• 4 self-centering wheel clamps with reversible pins
• PC, monitor, keyboard and mouse
• Brake pedal lock
• Steering wheel lock
• Wheel chocks
• Turntables
• Wheel alignment software with vehicle database
