High-performance leverless tire changer with dual assist arm, patented 4 cylinders clamping turntable and patented PAR-MOVE system

Discover the advantages of PAR-MOVE system

Industry 4.0

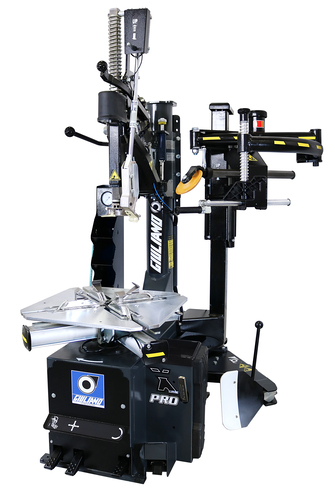

High-performance leverless tire changer with dual assist arm, patented POWERX 4 cylinders clamping turntable and patented space-saving Par-Move system.
PAR-MOVE parallelogram type operating arm assembly enables the tire changer to be installed against the wall, requiring no additional rear space in the workshop. It also grants extremely powerful rigidity of the operating parts, through advanced ergonomic design, helping handle different types of tires in the easiest and most effortless way.
Equipped with patented Leverless device (Lever-No Lever technology) to make your job quick, safe and easy with all types of tires and wheels.
Patented PowerX four cylinders turntable grants double (uniform) clamping power on jaws.

High-performance tire changer for high volume tire shops.


Functions
  • Robust fixed vertical tower with innovative PAR-MOVE parallelogram operating arm [Giuliano Patent]. 5 YEAR WARRANTY ON PAR-MOVE
  • SPACE SAVER: PAR-MOVE design enables the tire changer to be installed against the wall, requiring no additional rear space.
  • Reinforced Chassis. Fixed vertical tower and parallelogram operating arm [Giuliano Patent] makes SX119Pro LNL extremely robust and stiff, granting increased rigidity and eliminating all flexes.
  • Tabletop thickness 14 mm with POWERX four cylinders clamping system [Giuliano Patent]. 5 YEAR WARRANTY ON POWERX
  • Lever-No-Lever tire mounting/demounting system [Giuliano Patent], standard.
  • HP119 Additional auxiliary helper system (standard) provides a valuable support in mounting/ demounting Run Flat, UHP and low profiled tyres.
  • Bead breaker double effect Cylinder ø 200 mm.
  • 5 YEARS WARRANTY on “Made in Giuliano” gearbox.
  • PO System [Giuliano Patent] for granting no bead breaker shovel stuck into the rim during bead breaking operations.
  • Adjustable bead breaker shovel stroke. Super-quick and Simple.
  • Double rotation speed by pedal.
  • Available in 3ph-2 speed, 1ph-2 speed (inverter) and 1ph - 1 speed version.
    MOTOINVERTER for granting faster, more accurate and reliable drive for your tyre changer
  • Tire inflation by pedal (standard).
  • Vertical tower with built-in air tank, provides tubeless tire inflation and bead seating (optional), eliminating the need for a separate air tank.
  • Suitable for Tubeless tyre bead seating system (optional).
  • “Easy Access“ extractable pedal box for quick service.
  • Extensive selection of standard accessories
  • A very practical Wheel Lifter reduces effort and increases productivity (optional).
  • Designed, built and engineered in Italy.
  • "Right to repair" - all service parts available for at least 10 years since production, easy maintenance and reduced environmental impact.
Made In Italy
External clamping range 10" - 27"
Internal clamping range 12" - 29"
Max. tire diameter 1100 mm (43")
Max. tire width 415 mm (16")
Bead loosener force 30800 N
Operating pressure 10 bar (145 psi)
Power supply 400V - 3ph - 2 speed
220V - 1ph
220V - 1ph - 2 speed
Motor power 0,8 / 1,1 kW (3ph)
Balancing speed 7-14 rpm
Air Inflation Pressure 3,5 bar (50 Psi)
Net weight 428 Kg
Dimensions (WxDxH) 1390 x 1350 x 2170 mm
