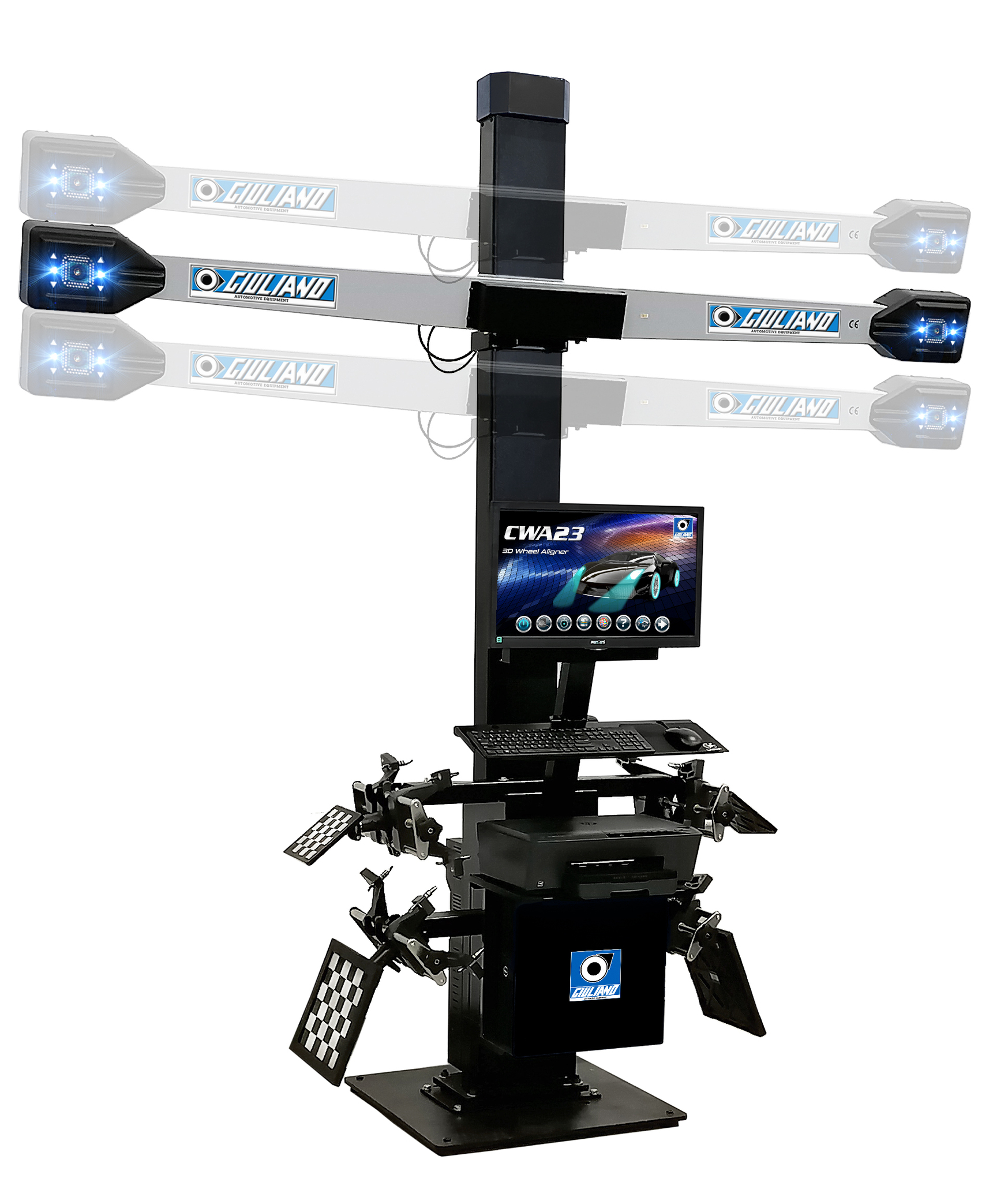

Wheel alignment for passenger’s cars and LCVs, 3-D camera imaging

Wheel alignment for passenger’s cars and LCVs, 3-D camera imaging with automatic variable height through motorized camera beam.

Industry 4.0
Camber (Front/Rear) ± 15° 00’ (± 00° 02’)
Caster ± 28° 00’ (± 00° 05’)
Kingpin Inclination ± 25° 00’ (± 00° 05’)
Half Toe (Front/Rear) ± 20° 00’ (± 00° 02’)
Total toe ± 40° 00’ (± 00° 04’)
Toe out on turns at 20° ± 20° 00’ (± 00° 02’)
Setback (Front/Rear) ± 25 mm (± 2 mm)
Thrust angle ± 05° 00’ (± 00° 02’)
Runout compensation ± 10° 00’ (± 00° 02’)
Included angle ± 40° 00’ (± 00° 05’)
Track width difference ± 300 mm (± 5 mm)
Power supply 230V AC, 50 Hz / 110V AC, 60 Hz
Power consumption 200W
(without printer)
Operating temperature 0 - 50°C
spinner
