Semi-automatic swing arm motorcycle tyre changer for motorcycles, scooters and ATV tyres. Sturdy, user-friendly and problem solving tyre changer to help best professionals in the field. Designed for high-volume tyre shops. Reinforced chassis, bead breaker double effect cylinder ø200 mm. Suitable for wheels with rims from 6" to 24" (max. wheel diameter 1010 mm./39", max. wheel width 240mm./9,5").
3 control pedals, fixed vertical tower, swinging horizontal arm and operating arm with manual lowering and locking by hand-lever.
Functions
Robust vertical tower, swinging horizontal arm with ø 36 mm operating arm;
Bead breaker double effect Cylinder ø 200 mm;
Reinforced Chassis;
Tabletop thickness 12 mm, specially designed for motorcycle wheels;
Fitting head designed for both standard and low profiled tyre
applications;
Plastic protections on fitting head to avoid any damage to alloy rim;
Four motorcycle clamping jaws adjustable to 4 different positions: 6”-13”, 10”-17”, 14”-21”, 17”-24”;
Two powerful clamping cylinders provide uniform clamping pressure;

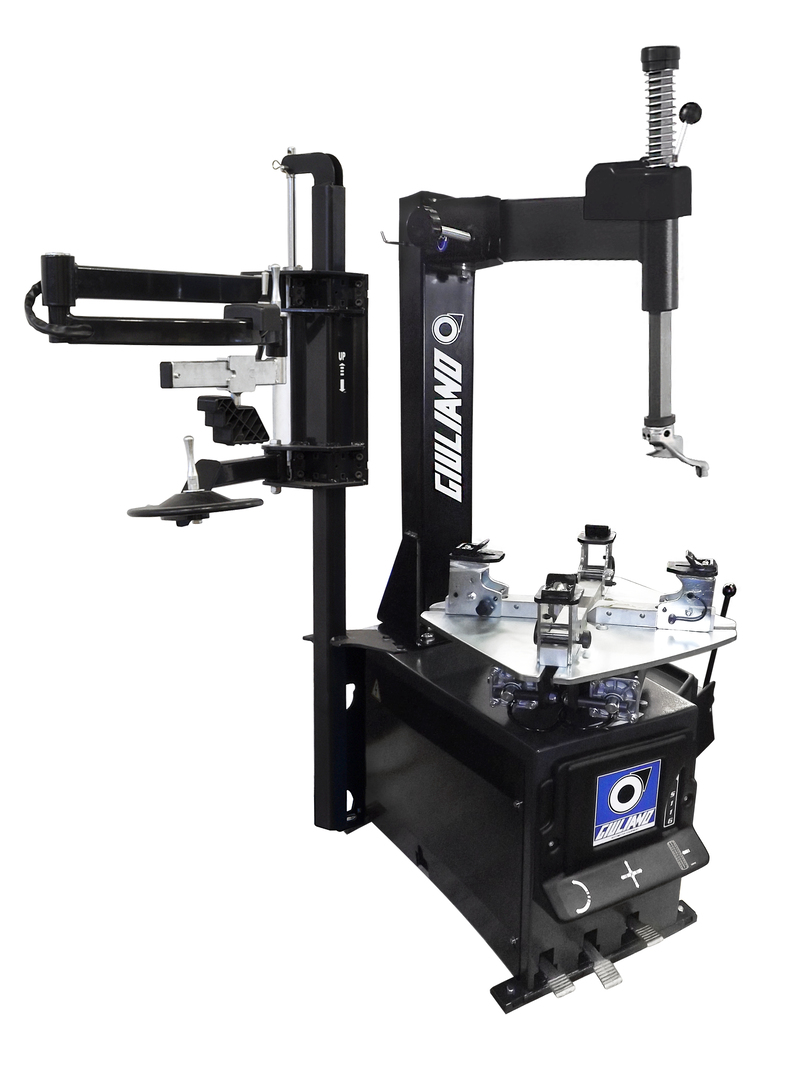

Suitable for PRESS ARM ECO additional pneumatic helper tower to ease mounting operations of low profiled and UHP tyres (optional).
Kit of 4 motorcycle adaptors with wider clamps, oversize/standard height (optional).
Tyre inflating gauge (optional).
PEDAL INFLATION SET. Installed on the side of the tyre changer, provides inflation system on board the tyre changer, activated by pedal (optional).
Designed, built and engineered in Italy.
"Right to repair" - all service parts available for at least 10 years since production, easy maintenance and reduced environmental impact.
Further Available versions upon request.
BMW Motorrad approved version is available through official BMW channels.
Rim clamping range from outside
6" - 24"
Max. tyre diameter
1010 mm (39")
Max. tyre width
240 mm (9,5")
Bead breaker cylinder force at 10 Bar
30800 N
Operating pressure
10 bar (145 Psi)
Power supply
400V-3ph 220V-1ph
Motor power
0,55 kW (3ph)
Rotating speed
7 rpm (3ph)
Pre-set tyre inflating pressure
3,5 bar (50 Psi)
Net weight
175 Kg
Max overall dimensions
1110 x 960 x 1710 mm
Discover newphotos and leaflet!
Product Details
This document includes all information about the product
Motorcycles, scooters & ATV tyres mounting/demounting with S116 Bike semi-automatic...
tyre changer.

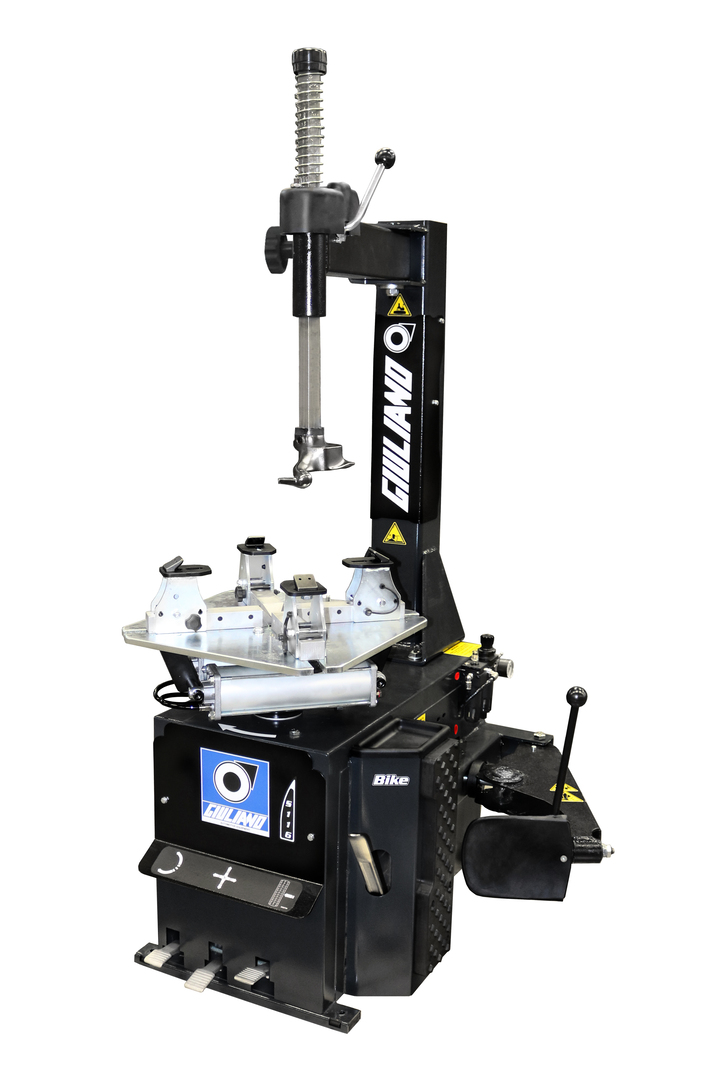

S116 Bike is a swing arm tyre changer with traditional bead breaker shovel, especially designed for motorcycle wheels.
Its features make it suitable for tyre specialists who want an excellent Giuliano quality at an unbeatable price !
