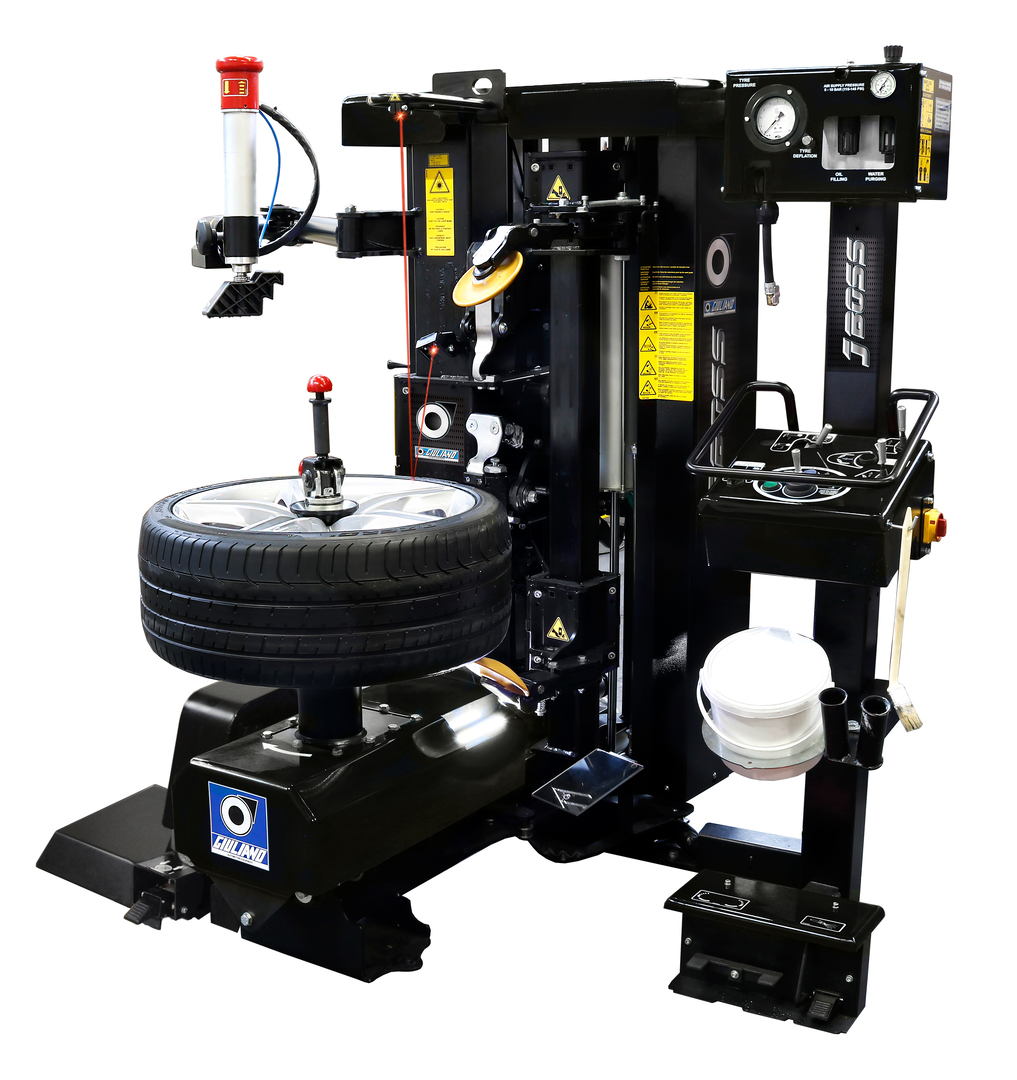

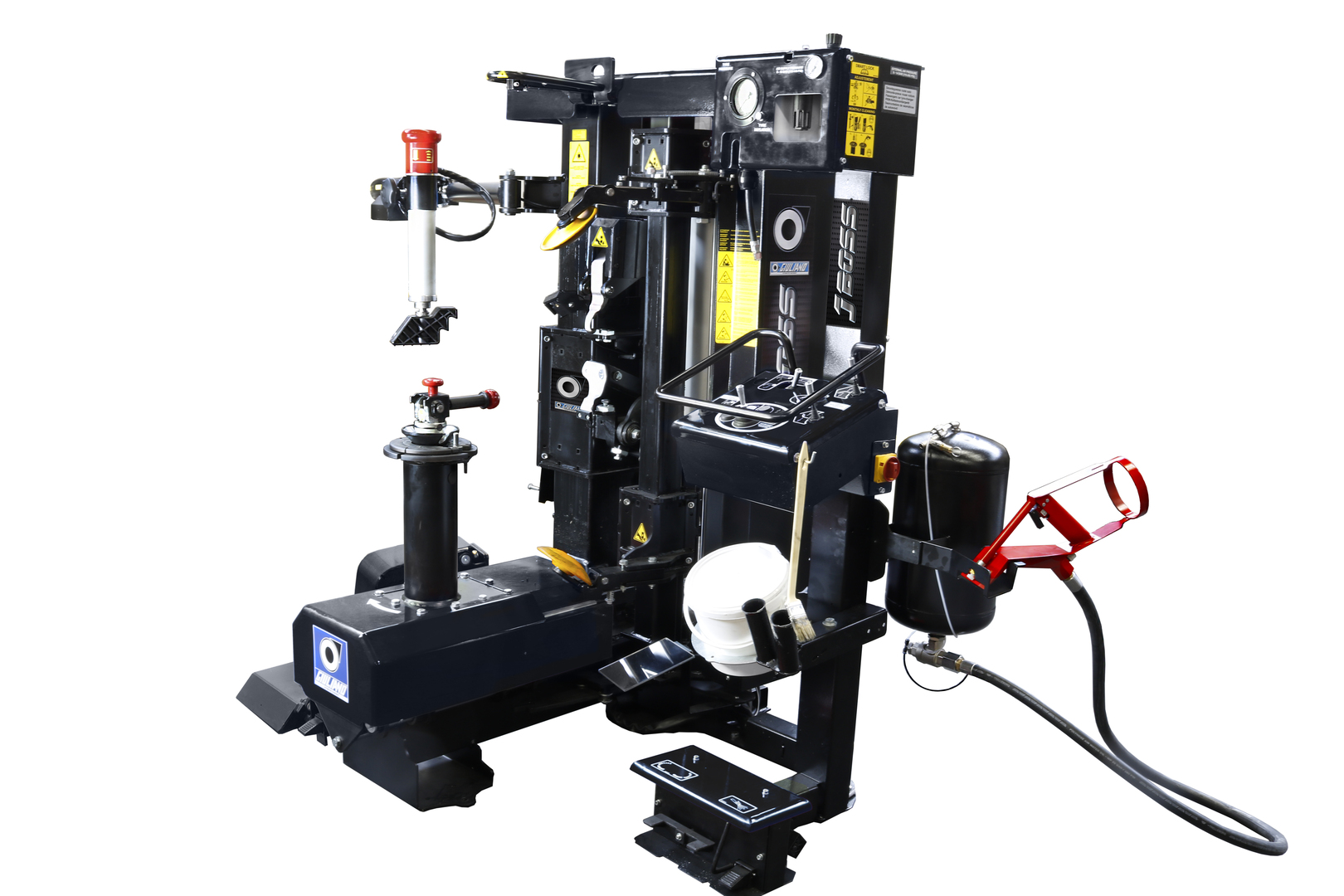

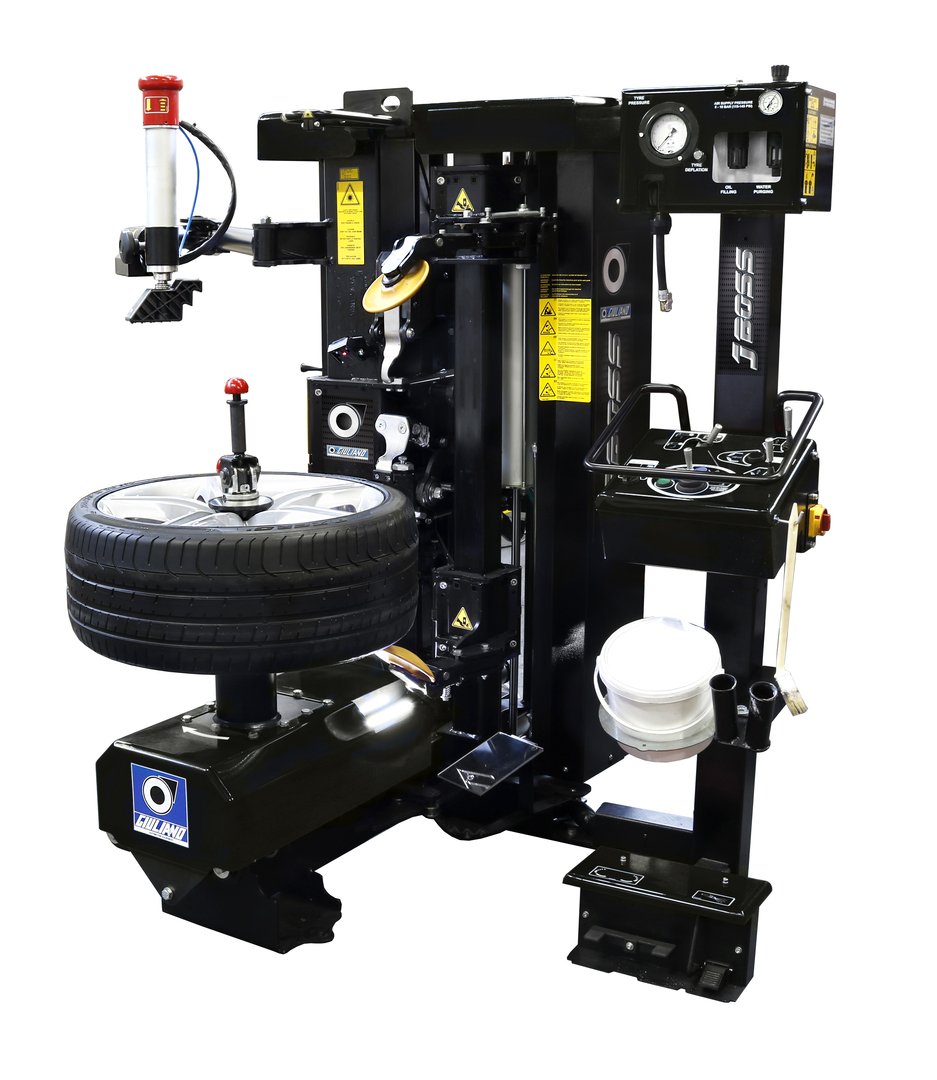

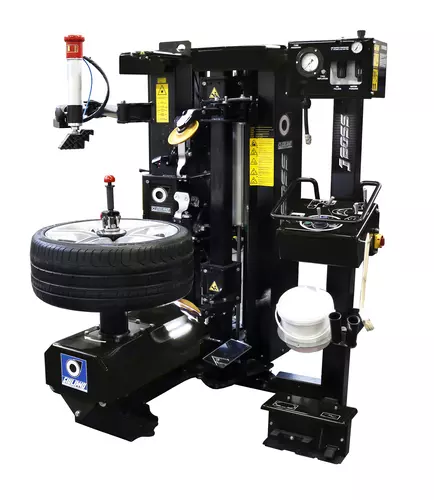

Super-automatic air operated no contact leverless tire changer

Super-automatic air operated no contact leverless tire changer suitable for passenger car tires with rims 12"-28" (max. wheel diam. 1200 mm./47", max. wheel width 406 mm./16"). Equipped with ultra-quick wheel clamping system. For top professional tire specialists, servicing run flat and UHP tires, with no tool/rim contact.

Approved by
Inspection of mounting machine according to wdk-test guideline based on wdk-Mounting/Demounting Instructions UHP and Run Flat Tires.
(*) Version available upon request
Main Features
Car (TC)

Car
Suitable for car wheels

LVL (TC)

LeVerLess
Allows tire mounting/demounting operations without use of classic conventional tire lever, making the operations more practical, easy, intuitive and without any stress for the operator.

NO Contact (TC)

NO Contact
No Tool/Rim Contact

12\

12"-28"
Allows to operate with tire assemblies from 12" to 28".

SLOCK

Smart Lock
SMART LOCK is the fastest manual wheel clamping system on spindle chuck in the world. Thanks to the “expanding nut” (GIULIANO exclusive patent), you just need a 90° movement on the knob after dropping the shaft into the center hole, to have a complete, safe and reliable wheel clamping on your spindle chuck, with no need of tricky hooking. Complete wheel clamping operation needs just 2 seconds. The absence of a turntable plate removes the restraint of the clamping range, normally found on conventional rim-clamp tire changers.

JOYSTICK

Joystick
Grants fast and accurate movements with maximum simplicity and accuracy.

TLAS (TC)

Twin Laser
Two laser pointers allow to easily set working tools in proper position simultaneously, according to tire diameter and width.

RBB (TC)

Roller Bead Breaking
Bead loosening by disks, without contact with the rim, works with tire assembly in horizontal position

CD Concept (TC)

Center Driven Concept
Bead loosener disks are slightly but purposely misaligned with the rim center for a better and faster penetration and immediate bead loosening (Giuliano Patent).

XTOOL (TC)

XTool
No contact and Leverless tyre demount tool, as it works in no contact with the rim ! Extremely user friendly, fast and safe. Giuliano patent

BP1+ (TC)

Bead Pressing Arm Plus
BP1 Plus pneumatic bead pressing arm (GIULIANO patent) lifts up automatically at the end of the mounting procedure, and moves back in rest position, with no need for the operator to change his working position.

2SPEED (TC) HYD

Two speed chuck
Two speed hydraulic chuck, allows to adjust rotation speed in accordance with the type of operation to perform, ensures work efficiency and safety.

Super-automatic air operated no contact leverless tire changer suitable for passenger car tires with rims 12"-28" (max. wheel diam. 1200 mm./47", max. wheel width 406 mm./16")).

Functions
  • Double arm/disk air operated bead loosener system;
  • Bead loosener disks are slightly but purposely misaligned with the rim center for a better and faster penetration and immediate bead loosening, Center Driven Concept (GIULIANO patent);
  • Syncronized movement of Mount and Demount tools, through Twin Lasers System setting and adjustment;
  • Double rotation speed by pedal and motoinverter;
  • Patented SMART LOCK ultra-quick wheel clamping system, through cone and shaft with Smart Lock nut;
  • XTool no contact leverless tire demount device (Giuliano Patent);
  • Wheel positioning through motorized clamping chuck and laser pointers (Patent pending);
  • Tire inflation by pedal (standard);
  • Operated by pedal and control console with joysticks;
  • Equipped with BP1 Plus bead pressing arm (standard), complete with self-storage function (GIULIANO patent);
  • Suitable for Wheel Lifter and tubeless tire bead seating system (optional).
Rim clamping range 12" - 28"
Max. tire diameter 1200 mm (47")
Max. tire width 406 mm (16")
For reverse mounted wheels, variable according to rim features
Max. wheel weight 80 Kg
Bead loosener force at 10 bar 12037 N (1227 Kg)
Operating pressure 8-10 bar (116-145 Psi)
Power supply 230V - 1Ph - 50/60Hz
Motor power 0,75 kW / 2 speed
Rotating speed 7-16 rpm
Pre-set tire inflating pressure 3,5 bar (50 Psi)
Net weight 561 Kg
Dimensions (WxDxH) 1800 x 1650 x 1650 mm
Standard Accessories
Pneumatic wheel positioner.
Plastic protections for Smart Lock centering cone
Rubber protections for clamping chuck
Plastic protections for clamping chuck driving pin
Plastic cone Ø 70 mm for clamping special alloy rims
Reduction ring for clamping chuck. To be used to fit particular alloy rims
Rubber protector for steel rims. (marked with •)
Rubber protector for aluminium rims (marked with ••)
Rubber protector for aluminium rims with arched spokes. (marked with •••)
Adjustment knob for SMART LOCK
Plastic bead pressing clamp with extra insert for rim edge with special inclination. To be used together with rubber protections for mounting UHP and RUNFLAT tyre according to WDK rules.
Air lubricator, air filter/water trap
Cleaning brush for SMART LOCK and clamping chuck inner surface
Plastic tire lever. To be used during tire demounting in accordance with the WDK procedure.
Brush
Lube paste bucket, 5 kg.
Kit of nylon protectors for mounting
Work gloves
CD-ROM including literature (parts book, operators manual and training video)
O rings for SMART LOCK
Optional Accessories
Wheel clamping adaptor for reverse mounted and plastic clad wheels on center post tyre changer. Standard supplied with measuring caliper and two kits of pins (6 pins 70mm length; 6 pins 100mm length).
Wheel clamping kit for FRR QUICK wheel clamping adaptor, allows clamping wheels with no center hole.
Truck cone kit, allows clamping VANs and LCVs wheels with center hole diameter from 120 to 190 mm.
Truck cone kit, allows clamping VANs and LCVs wheels with center hole diameter from 140 to 220 mm.
Double face cone for light trucks, allows clamping VANs and LCVs wheels with center hole diameter from 75 to 145 mm.
Cone for steel rims with low thickness and center hole diameter from 75 to 120 mm
G-CLAMP Set. Helps adding extra bead-pressure points on top bead while assembling it. Kit includes 2 regular and 2 extra-size G-clamps.
Kit of nylon protectors for mounting
Kit of 4 rubber protections for aluminium rims.
Kit of 4 rubber protectors for aluminium rims with arched spokes.
Kit of 4 rubber protections for steel rims.
Plastic tire lever for soft tires removing operations. To be used during tire demounting in accordance with the WDK procedure.
Kit of 10 ABS protections for cone.
Kit of 10 rubber protections for clamping chuck faceplate
Lube paste bucket, 5 kg.
Tubeless inflation external kit.
Pneumatic wheel positioner.
Manual bead depressor.
Manual bead depressor with extendable travelling pad.
Kit Run Flat UHP
JBoss vs Standard Steel

JBoss vs Standard Steel

JBoss vs Run Flat

JBoss vs Run Flat

JBoss vs Low Profile

JBoss vs Low Profile

How to ... FRR

How to use the FRR QUICK flange?

This video shows the use and versatility of the FRR/QUICK flange designed for locking wheels with reverse channels and clad rims on all Giuliano's center post tire changers. The same flange, once completed with a special kit, becomes the solution for locking French wheels without central hole: an accessory, two solutions!
How to ... FRB

How to use the FRB flange?

This video shows the use and versatility of the FRB flange designed for locking BMW wheels with reverse channels and clad rims on all Giuliano's center post tire changers.
How to ... SMART LOCK

How to adjust the SMART LOCK ?

This short video will show you the quick and easy instructions to adjust SMART LOCK and keep it running at its best. Easy cleaning operations with the supplied accessories, and tightening force adjustment operations through the supplied device to quickly and safely block all types of rims.
How to ... GUN

How to use the GUN inflation device?
