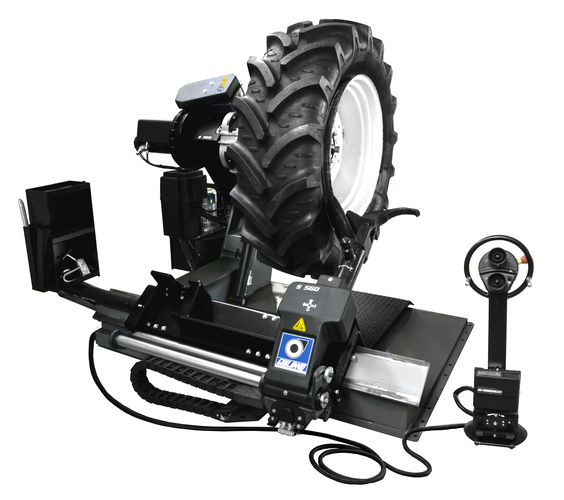

Heavy duty truck tire changer, suitable for heavy truck, bus, agricultural and earthmoving tires with 14" - 58" (1) rims (max. wheel diameter 2400 mm/94.5", max. wheel width 1300 mm/51"), equipped with hydraulic two-speed clamping chuck, tool holder arm carriage with automatic movement, automatic tool rotation and mobile control unit for safe and convenient operation. Suitable for both tube and tubeless tires.
The greatest number of operating arm automatic features, high performance and most powerful engines make this tire changer the ideal choice for those who want something more than the S 551 XL.
Super automatic machine of excellent quality capable of handling earth moving wheels. Recommended for professional truck tire service and high volume workshops.
Our truck tire changer makes changing tires for heavy duty trucks and tires for agriculture a breeze. Get the job done quickly and efficiently!
Functions
Hydraulic movement of clamping chuck holding arm (up-down);
Hydraulic travel movement of operating arm carriage (left-right);
Operating arm automatic tilting and travelling on carriage;
Double tool (disk + finger) automatic rotation;
Wheel clamping by fully hydraulic operated jaws;
Operating arm and clamping chuck arm facing each other;
All motions controlled by console and pedal box;
Emergency safety button on control console, for stopping all functions;
Suitable for control console installation on pivoting arm (optional);
Rim center hole clamping range ø 80 - 1200 mm;
Clamping chuck minimum height from ground 315 mm (center);
Wide and low-profile platform facilitates loading of heavy wheels.
Clamping chuck is driven by a two-speed electric motor.
Suitable for the installation of remote control (optional). Replaces the standard cables and allows control of all functions by radio transmission.
Designed, built and engineered in Italy.
"Right to repair" - all service parts available for at least 10 years since production, easy maintenance and reduced environmental impact.
(1) For the rims from 47" to 58" it is necessary to use the optionalset of 4 jaw extensions for clamping wheels from 47" to 58".
Rim clamping range without extensions
14" - 46"
Rim clamping range with extensions (optional)
14" - 58"
Max. tire diameter
2400 mm (94,5")
Max. tire width
1300 mm (51")
Power supply
400V - 3ph / 2 speed Other voltages and frequencies available upon request
Hydraulic pump motor power
1,5 kW
Gearbox motor power
1,8 / 2,5 kW
Operating pressure
140 bar (2031 psi) ±10%
Bead loosener force
36000 N
Net weight
1025 kg
Max. tire assembly weight
1800 kg
Max overall dimensions
2210÷2850x1840÷2050x970÷1900 mm
